Low Frequency Pure sine wave Inverter
— BZP-40KW anti humid and corrosive power inverter
Product category
BZP-40KW anti humid and corrosive power inverter with special coating process,it to be able to survive the a very humid and salty atmosphere existing on a boat. This at least requires conforming coating on all circuit boards and connectors.
The inverter output waveform is pure sine wave; this kind of AC power is suitable for most industrial electronics and home appliances, the power supply features much better than other modified sine wave and square wave.
Technical Features:
1, Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the nature of their load.
2, The output frequency can be set, this function is very convenient for customer.
3, The output voltage can be set between +20 % to -40 % of rated voltage. It’s a great convenience to users.
4, The DC input voltage range can also be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries, photovoltaic modules also can be used flexibly.
5, Pure sine wave output. with good transient response less than 40MS, little harmonic distortion, higher conversion efficiency and stable output voltage.
6, Powerful data display and fault instruction function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.

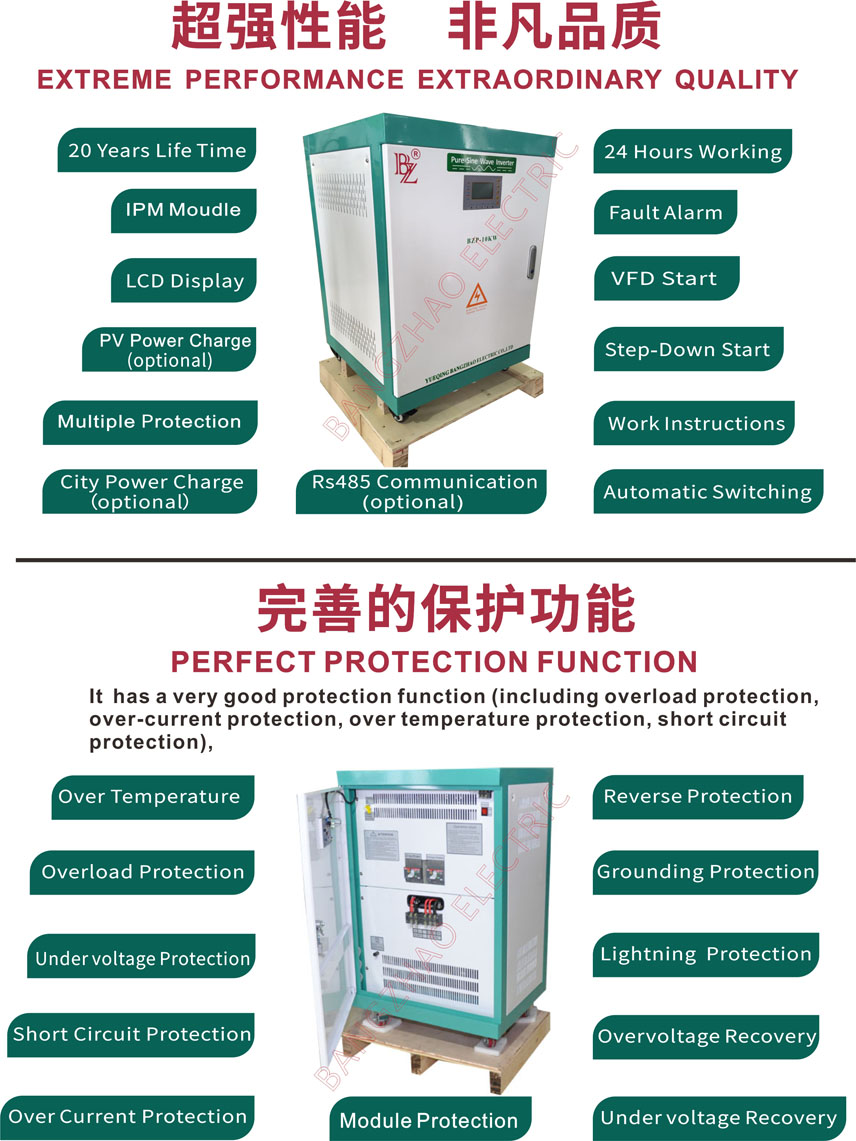

7, Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.
8, Wide input voltage can be set according to customer’s requirement. Input voltage range can be selected from 100-400V or 400-850V.
9, Product have passed the European CE (EMC and LVD) certificated and accredited by Australia CEC energy network.
Technical Data（Below parameter only for reference，Could be custom made to user specifications.）
Model | BZP-40KW | ||
Isolation mode | Low Frequency Transformer | ||
DC Input | Rated voltage (Vdc) | 360V | |
Rated current（A） | 111A | ||
AC Output | Rated output power | 40KW | |
Output waveform | Pure Sine Wave | ||
Rated Voltage | 220V±3% | 380VAC±3% | |
Phases | Single phase | 3 phase 4 wire | |
Rated current（A） | 182A | 61A (phase current) | |
Frequency | 50Hz or 60Hz | ||
Rated output voltage range (V) | 220/230/240/380/400/415VAC optional | ||
Power Factor（PF） | 0.9 | ||
Overload Ability | 150%, 5 seconds | ||
Efficiency | >93% | ||
Waveform distortion rate (THD) | |||
Dynamic Response (0 to 100% load) | 5%，≤50ms | ||
Display | LCD | ||
Running mode | Working continuously | ||
Electrical insulation properties | 2000Vac, 1 Minute | ||
Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. | |
Cooling method | Fan-cooled | ||
Short-circuit protection | No automatic recovery, need to restart the machine | ||
Working environment | Noise ( 1 meter) | ≤50dB | |
Degree of protection | IP20（indoor） | ||
Working Altitude（m） | ≤2000 | ||
Working temperature | -25~+55℃ | ||
relative humidity | 0~90%，non-condensing | ||
Mechanical dimension | Depth* Width * Height | 650x750x1100mm | |
Weight （Kg） | 350Kg | ||
※Above parameter only for reference ,could be custom made to user specifications.
